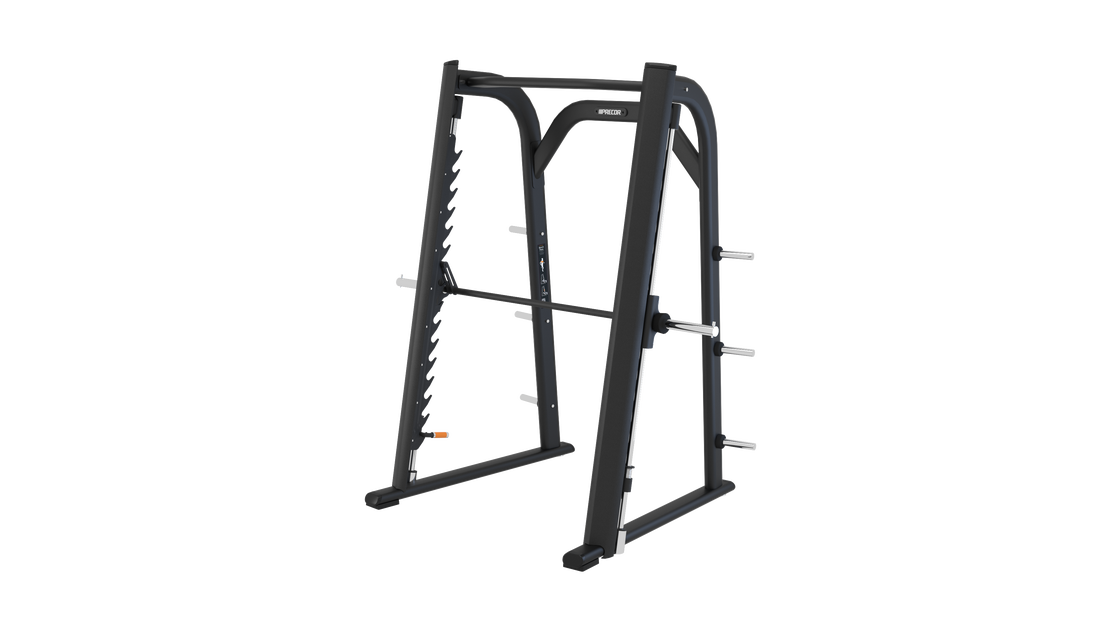

Precor DPL0802 Discovery™ Strength Smith Machine

About this item

The Discovery™ Strength Plate Loaded Smith Machine combines a bold, sleek design with high head clearance and a clean walk-through frame for easy access. Its 11-degree bar angle aligns with the body’s natural movement path, while the advanced Smith bar design ensures a smooth, controlled, and natural lifting experience.

Precision-engineered for durability and peak performance, the Discovery Strength Plate Loaded series is built to impress and made to last. With optimized biomechanics, intuitive usability, and high load capacity, it delivers reliable results for users of all fitness levels—making it a smart investment in high-performance strength training equipment.

PIN: DPL0802

Product Description

• Optimized Bar Glide Path
  The 11-degree Smith bar angle follows the body’s natural movement path for a more bio mechanically efficient lift.
• Innovative Smith Bar System
  Designed to support higher weight capacity while maintaining a low starting weight of 35 lb (15.9 kg), without the need for a complex counterbalance system.
• Intuitive Safety Stops
  Easily adjustable safety stops allow users to make quick changes without leaving the workout position.
• Clean, Open Design
  Increased head clearance and a walk-through frame enhance accessibility and improve overall visibility within the facility.
• Streamlined Bar & Bearing System
  Features 20% fewer high-wear components compared to traditional designs, reducing maintenance and lowering total cost of ownership.
• Integrated Weight Storage
  Six weight horns provide convenient storage for over 1,350 lb (612 kg) of weight plates.
• Secure Hook System
  A unique bar catch plate profile with a roller wheel hook ensures smooth and secure placement across 16 catch positions

Specifications

• Dimensions (L × W × H): 58 × 84 × 91 in (148 × 213 × 231 cm)
• Product Weight: 414 lb (188 kg)
• Maximum Load Capacity: 600 lb (272 kg)
• Starting Weight: 35 lb (16 kg) – Smith bar assembly (unloaded)
• Glide Path Angle: 11°
• Smith Bar Travel Length: 61.5 in (156 cm)
• Hook Positions: 16 positions with 4 in (10 cm) spacing
• Head Clearance: 80 in (203 cm) walk-through design
• Safety Stops: Tested up to 600 lb (272 kg) from 18 in (46 cm), 10 cycles
• Weight Plate Storage:
  • Six (6) storage horns
  • 7 in (18 cm) horn length
  • Capacity: Up to 1,350 lb (612 kg) total
  • Approx. five 45 lb (20 kg) plates per horn
• Recommended Plates:
  2 × 2.5 lb, 2 × 5 lb, 2 × 10 lb, 4 × 25 lb, 8 × 45 lb
• Frame & Finish:
  Heavy-duty steel tubing with fully welded structural areas for maximum durability. Powder-coated finish for enhanced resistance and longevity.
